Hard surfacing flux cored wire& wear plates size "mm" to "inch"
Posted by:Leigong welding alloys Release date:2016-05-25 Views:22041 Back
|

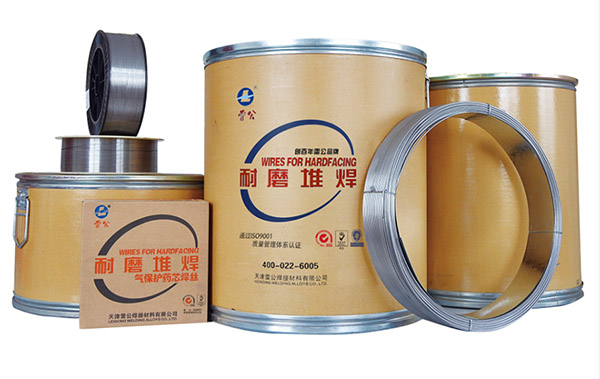

Hardfacing Wire Size Comparison Table ("mm" to "inch") |
|||||||
| mm | 1.2 | 1.6 | 2.0 | 2.4 | 2.8 | 3.2 | 4.0 |
| inch | 0.045 | 1/16" | 5/64" | 3/32" | 7/64" | 1/8" | 5/32" |
 |
|||||||
|

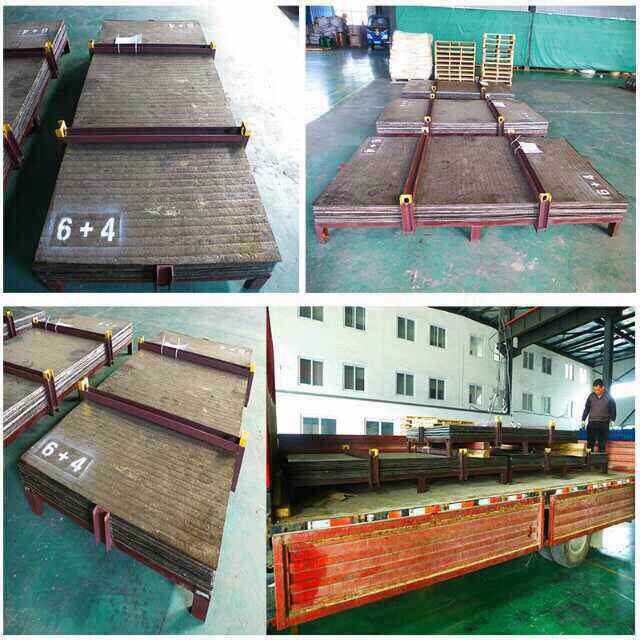

Wear Plate Common Thickness |
|||||||
| Thickness |
3+3,
5+3, 8+3, 4+4, 6+4, 6+6, 8+4, 8+5, 8+7, 14+7, 8+8, 10+9, 10+15, 12+12, 12+17, 12+20 |
||||||
| Common size |
1500mm*3000mm, 2880mm*1410mm,
2000mm*3000mm, and customized sizes. |
||||||
| Cutting method |
plasma
cutting, Water-jet cutting, linear cutting |
||||||
 |
|||||||
